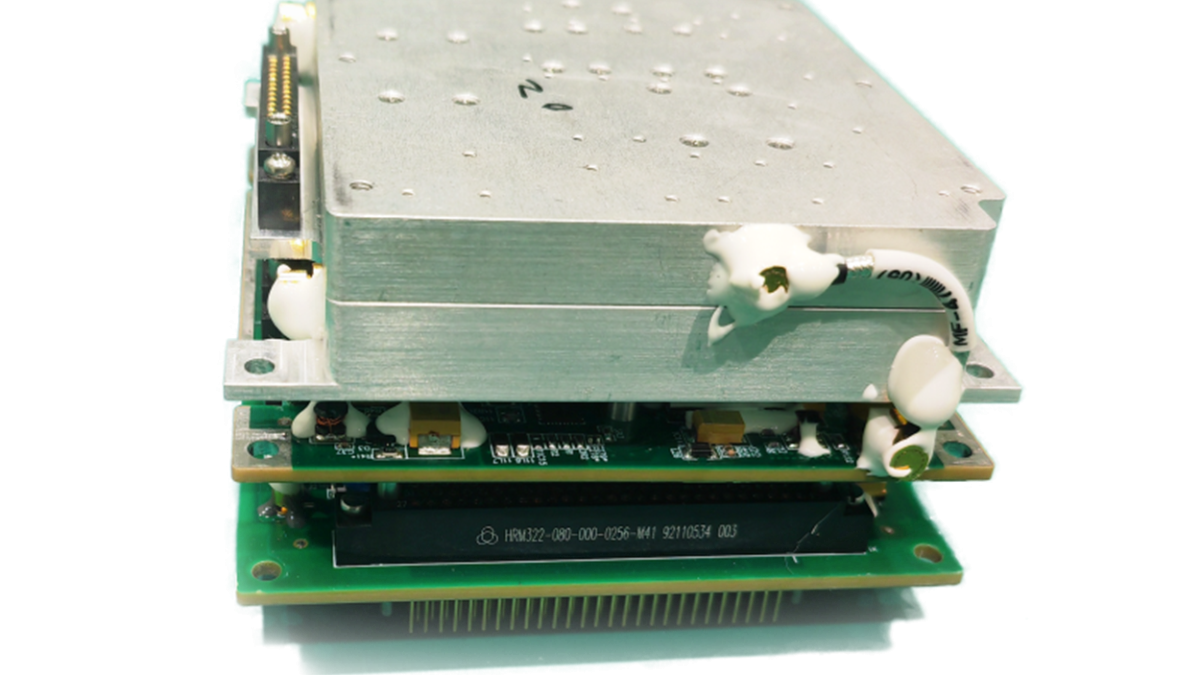

Universal and highly reliable spaceborne data memory
2025年9月4日Hinge
2025年9月4日
| product code | CG-DJ-CKSC-TD01 |
| Envelope size | 94.45×90.6×44.65mm |
| Weight | 520g |
| Power consumption | Storage ≤ 3.5W, remote control ≤ 5.5W, remote control telemetry ≤ 11W; Remote control data transmission ≤ 20W |
| Power distribution | 12V |
| Measurement and control mode | Spread spectrum system |
| Spread spectrum method | Direct sequence spread spectrum（DS） |
| Transmit power from the data. | 33dBm±0.5dBm |
| Data transmission coding method | LDPC，Coding rate7/8； |
| Fixed storage capacity | 60GB |
| Delivery cycle | 5 months |
