Special 5m resolution multispectral camera for satellite
2025年9月8日
50m resolution night vision camera

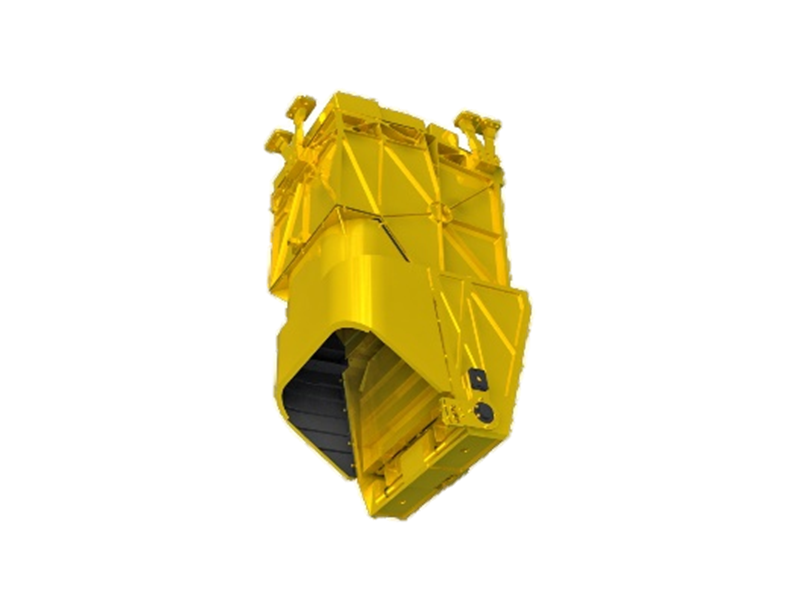

2025年9月8日The 2m resolution micro-nano camera is one of the core components of earth observation satellites, suitable for CubeSats, with advantages such as small size, light weight, and high resolution.
| Imaging mode | Push sweep imaging |
| Resolution | 2m |
| Width | 12km |
| Spectrum | Full colour: 450nm-700nm Blue: 430nm-510nm Green: 510nm-580nm Red: 630nm-690nm Near infrared: 740nm-895nm |
| Signal-to-noise ratio | 35dB |
| Data rate | 0.72Gbps |
| Dimensions | Φ280mm×260mm |
| Power consumption | ≤13W |
| Weight | ≈3kg |
