Infrared series of satellites

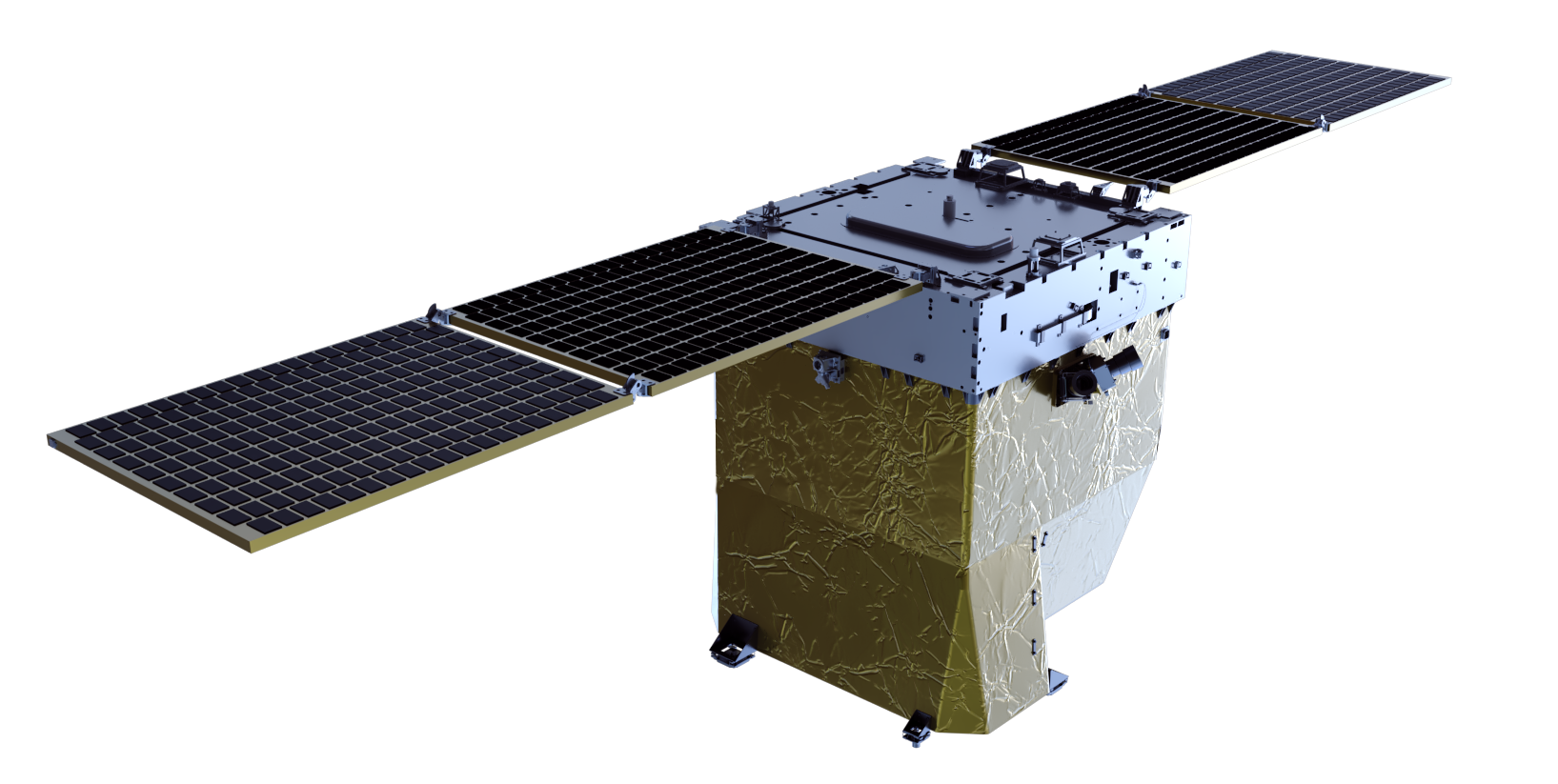

2025年8月29日The 5m resolution spectral series satellites represented by spectral stars are equipped with multispectral imagers, shortwave, medium wave, and longwave infrared cameras, and have the characteristics of wide band, multispectral, large width, and ultra-high speed transmission.
| Imaging mode | Push scanning imaging, inertial space imaging, low-light imaging |
| Resolution | Visible light, near-infrared: 5m shortwave, medium-wave infrared: 100m long-wave infrared: 150m |
| Spectrum | B0:450nm-800nm B1:403nm-423nmB2:433nm-453nm B3:450nm-515nmB4:525nm-600nm B5:630nm-680nmB6:784.5nm-899.5nm B7:485nm-495nmB8:615nm-625nm B9:650nm-680nmB10:698.75nm-718.75nm B11:732.5nm-747.5nmB12:773nm-793nm B13:855nm-875nmB14:660nm-670nm B15:677.5nm-685nmB16:750nm-757.5nm B17:758.75nm-762.75nmB18:935nm-955nm B19:1000nm-1040nmSW1:1195nm-1225nm SW2:1360nm-1390nmSW3:1550nm-1590nm SW4:1610nm-1690nmMW:3700nm-4950nm LW:7500nm~13500nm |
| Width | Better than 110 km |
| Weight | 200kg heavyweight |
